nomus-panel-ledcity2

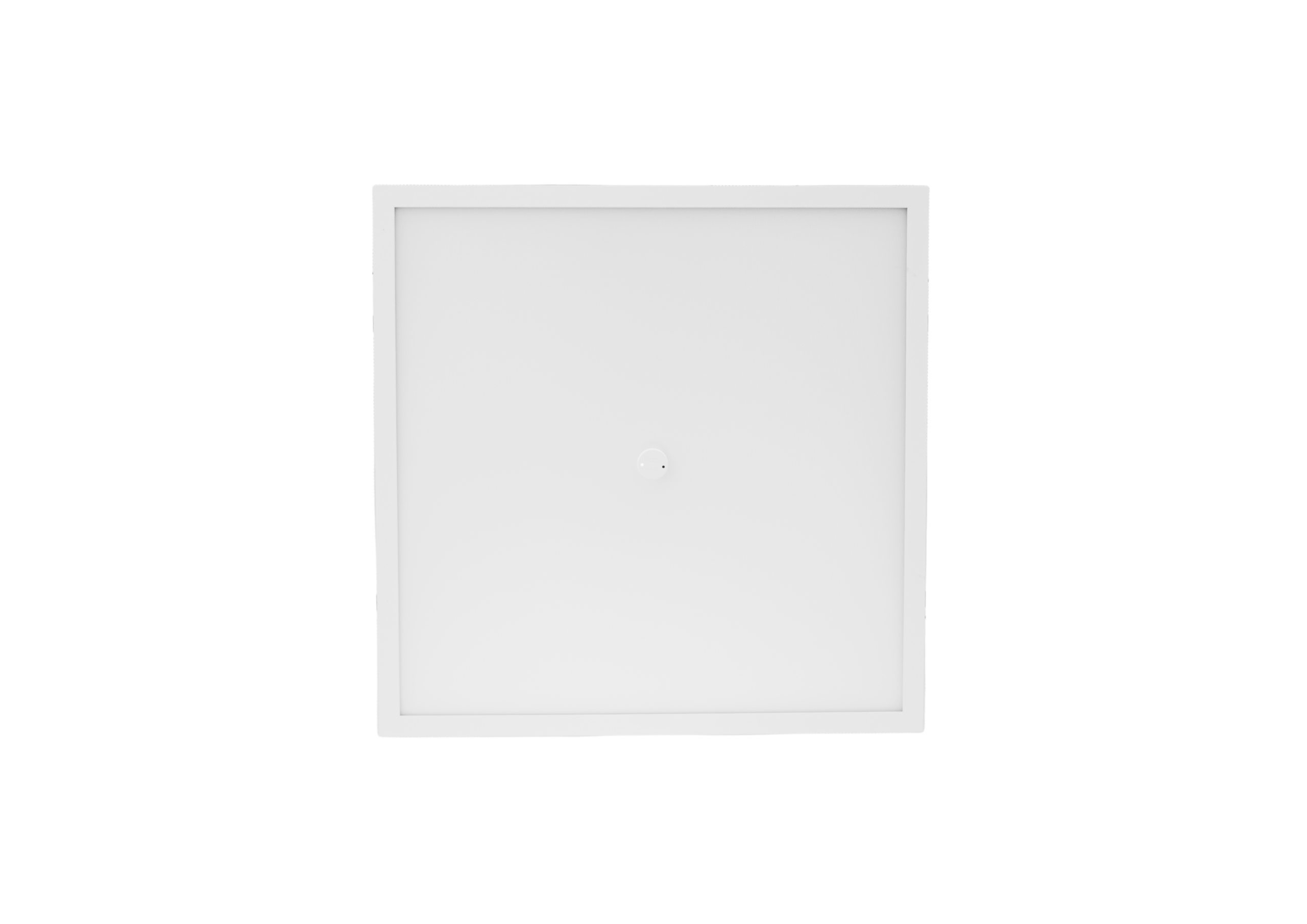

NOMUS Panel.

The NOMUS Panel is a modern luminaire equipped with the NOMUS Sensor Node Dali. Thanks to this component, the panel not only has an integrated motion and daylight sensor, but can also communicate wirelessly with other luminaires and thus be customised to individual requirements.

Downloads.

Here you will find data sheets, instructions and much more to get more information about the product.

NOMUS Panel - Data sheet
NOMUS Panel - Installation instructions

Technical specifications.

Input voltage
220 - 240 VAC
Battery operation
190 - 240 VDC
Operating frequency
50 - 60 Hz
Material
Al/PMMA
Colour temperature
3000 - 6000 K
Power factor
0.98
Voltage peak strength
320 VACrms
Colour
Selectable
Colour rendering index
> 90
Colour consistency (Mac Adam)
3
System efficiency
108 lm/W
Energy class
F
Standby consumption
< 0.5 W
Service life
40'000 h
IP protection class
IP20
Protection class
II
Operating temperature
-10 °C .. 40 °C
Storage temperature
-20 °C .. 50 °C
Operating & storage humidity
10 - 80 % rH
Motion detector technology
Radar (HF)
Motion detector performance
<3.0mW
Motion detector frequency
5.80GHz
Motion detector distance
<8m
Detection distance adjustable
Yes
Communication technology
Wirepas Mesh
Communication performance
< 6.5mW
Communication frequency
2.4 GHz
Communication distance
max. 8-12m
Colour
White
Follow-up time settings
1s - 4h
Gradual light start
Yes
Basic light function
Yes
Basic light settings
0-100% / 1% step
Daylight control
Yes
Group formation
Yes
Swarm intelligence
Yes
Remote access
Yes
Status monitoring
Yes
Detection monitoring
Yes
Energy monitoring (via D4i)
Yes
Reset
Yes (magnetic)
Status LED
Yes (multicolored)
